StampOne: Addressing Frequency Balance in Printer-proof Steganography

Cover image, residuals, and encoded face and wild images compared across a non-robust VNet baseline and StampOne with VNet, LeViT-UNet, and Res-UNet backbones — **Figure 1.** Results of applying our preprocessing across various U-shape architectures, compared to StegaStamp, Code Face, and non-robust steganography models (e.g. Baluja et al., 2017). The residual image, highlighting the difference between the original and encoded image, is shown above each encoded image. StegaStamp and Code Face use 400×400×3 image inputs, while the other networks use 256×256×3; the hidden message is 100 bits for StegaStamp/Code Face and 256 bits for our structures. The non-robust model (two VNets, without our preprocessing and spectral discriminator) shows significant color artifacts in its residual — indicating low-frequency modifications — while every StampOne variant shows a minimal, high-frequency-only residual.

Abstract

Robust steganography and invisible watermarking techniques in printed images are crucial for anti-counterfeiting systems within the multimedia industry — for copyright protection, security of documents (e.g. passports), and brand-protection graphic elements. Conventional steganography models, mainly designed for digital non-lossy media, encounter challenges in recovering messages from images degraded by printing and scanning or social media compression, particularly due to limitations associated with utilizing image regions characterized by the lowest and highest frequencies.

In this paper we introduce StampOne, a novel printer-proof steganography model utilizing Generative Adversarial Networks (GANs). StampOne ensures balanced frequency density between encoder and decoder inputs, reducing disparities between original and encoded images. Our method, through integration with diverse U-shape networks (image-to-image), emphasizes the significance of frequency domain analysis in robust steganography. It facilitates the development of robust steganography models capable of withstanding diverse noise types, including JPEG compression, contrast variations, brightness fluctuations, aliasing, blurring, and Gaussian noise. It surpasses previous models in both the quality of encoded images and printer-proof capabilities.

4096 bitsmax. hidden message size — 20× StegaStamp / Code Face / RoSteALS

+10%decoding accuracy over prior SOTA (StegaStamp)

0.98SSIM of encoded vs. original images (best among robust models)

100%bit accuracy at 6×6 cm to 4×4 cm printed & photographed faces

Why frequency balance matters

Steganography GANs, like most GANs, struggle to reproduce the high-frequency content of natural images — and printing/scanning further reshapes that spectrum. StampOne's preprocessing (gradient + wavelet transform) explicitly balances the frequency density the encoder and decoder are asked to learn, instead of leaving it to chance.

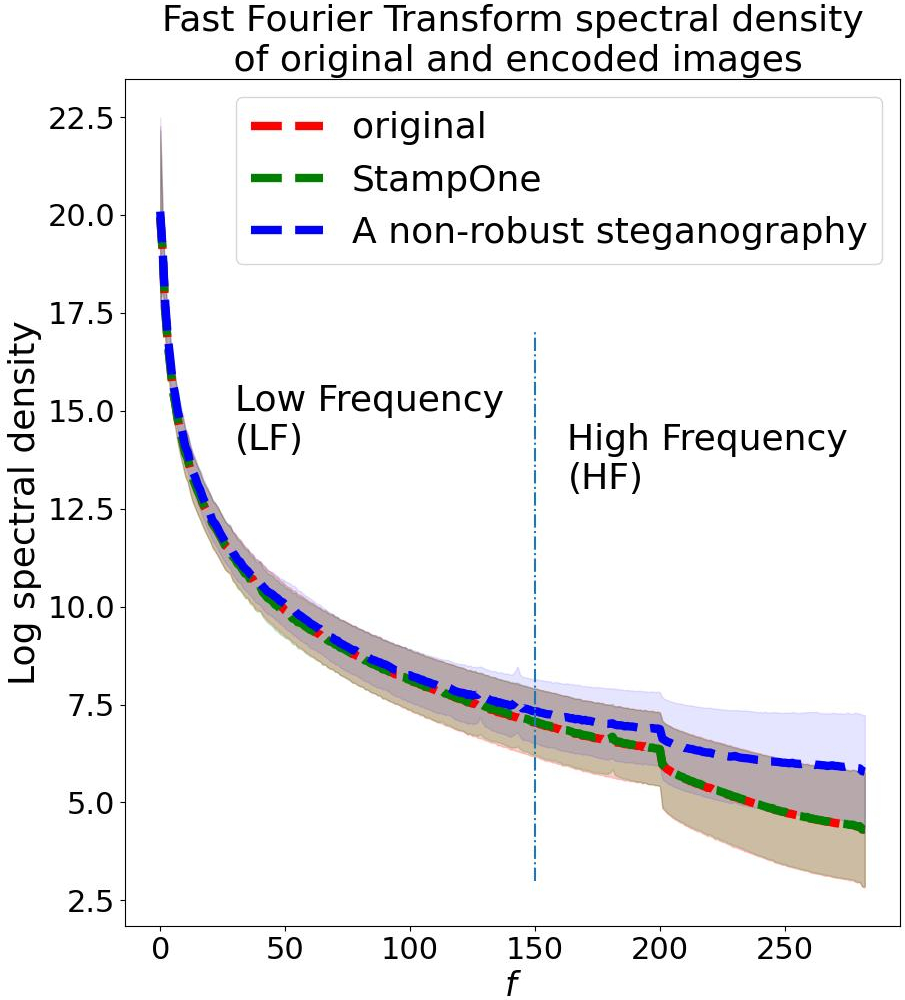

FFT spectral density of original and encoded images — **(a)** StampOne's encoded images track the original image's high-frequency spectrum far more closely than a non-robust steganography GAN.

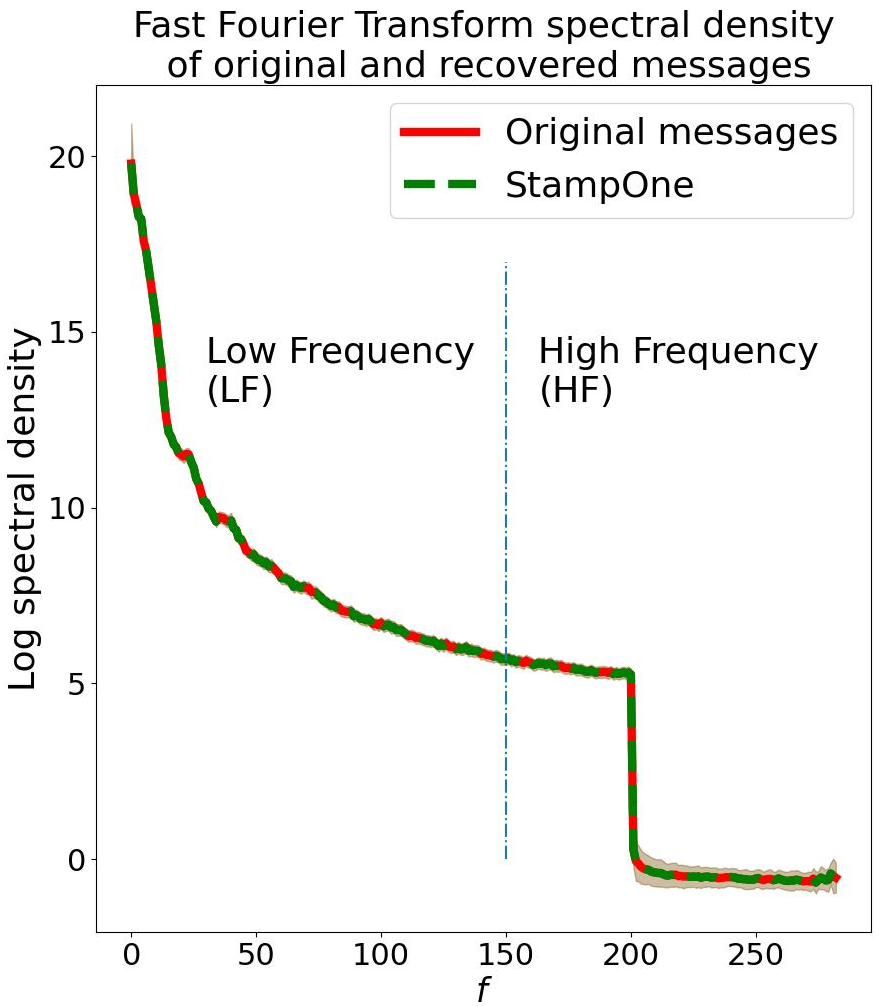

FFT spectral density of original and recovered messages — **(b)** Recovered 2D binary messages show a sharp drop in high-frequency amplitude — exactly the range the spectral discriminator is trained to reinforce.

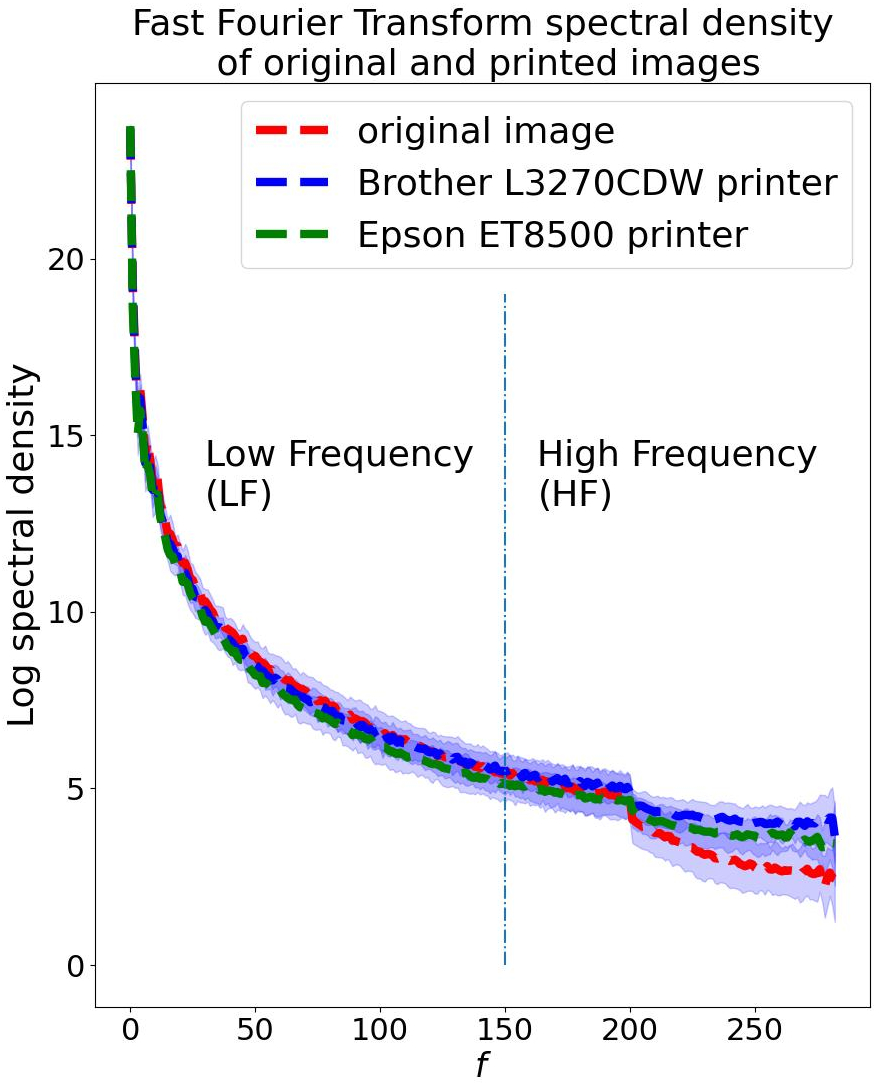

FFT spectral density of original and printed images from two office printers — **(c)** Printing (Brother L3270CDW, Epson ET8500) and scanning measurably raises high-frequency spectral density — part of the noise StampOne is trained to survive.

Method

In summary, the main contributions of this work are:

A gradient + wavelet preprocessing pipeline that converts the cover image and the message into a consistent, frequency-normalized representation for both the encoder and the decoder — independent of which U-shape backbone is used.
A treatment of the frequency-density balance problem in GANs that yields better decoding accuracy and higher perceptual quality of encoded images.

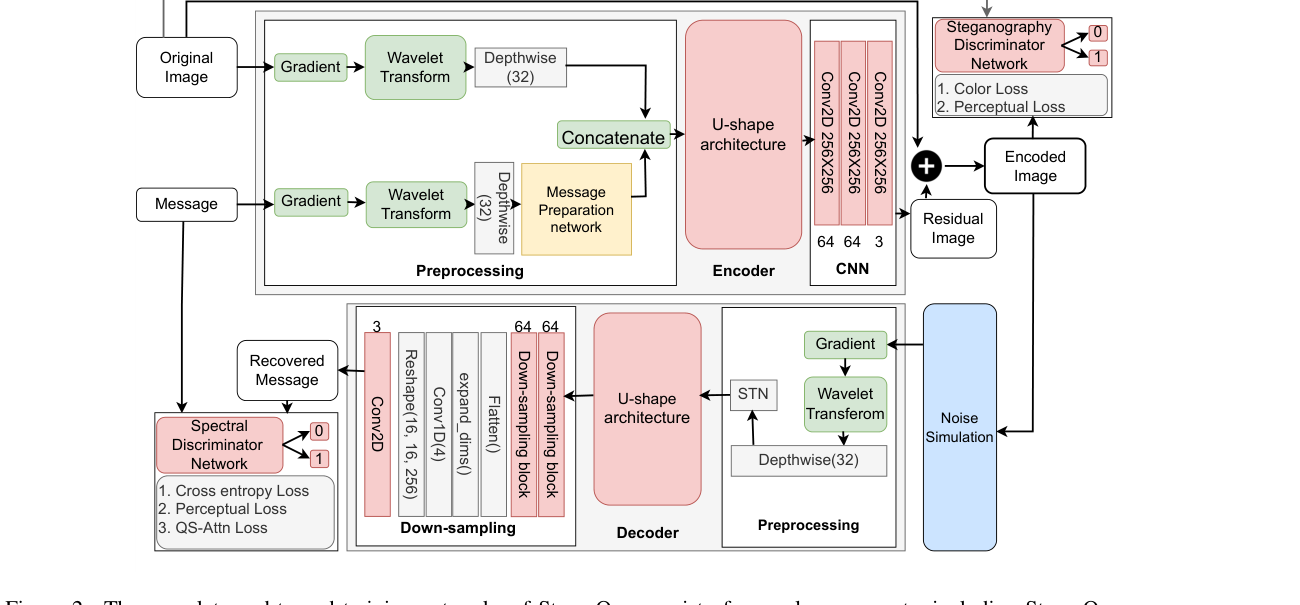

StampOne end-to-end training architecture diagram — **Figure 2.** The complete end-to-end training pipeline: preprocessing (gradient, wavelet transform, Depthwise weighting), a U-shaped encoder, a steganography discriminator, a U-shaped decoder with a Spatial Transformer Network (STN) for warp/rotation robustness, and a spectral discriminator.

Encoder

The 256-bit message is reshaped into a 16×16 grayscale map, converted to RGB, and — like the cover image — passed through a gradient operation and a Haar wavelet transform (5 sub-bands, 3 channels each). A Depthwise layer weighs each wavelet sub-band before the Message Preparation Network (MPN) merges the message into a representation compatible with the cover image's frequency space. Both streams are concatenated and fed to a U-shape network, followed by a 3-layer CNN block that produces the residual added to the cover image.

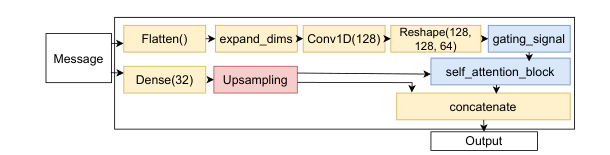

Message Preparation Network (MPN) diagram — **Figure 3.** The Message Preparation Network reliably prepares messages for embedding in both digital and printed images.

U-shape backbone

StampOne's preprocessing is backbone-agnostic: the paper evaluates it with UNet, VNet, Eff-UNet, LeViT-UNet, ResUNet, Swin-UNet, Attention-UNet, Attention-VNet, and UNet++. The two configurations reported in the results below are M1 (Attention‑VNet) and M2 (UNet++).

Decoder

The decoder mirrors the encoder's preprocessing, but adds a Spatial Transformer Network (STN) before the gradient/wavelet stage to correct for warping and rotation introduced by printing and camera capture. After the U-shape network, a CNN down-sampling stack (sized to the message length) and a final Conv2D with a Snake activation recover the hidden bits, which are error-corrected with BCH codes.

Discriminators & losses

A steganography discriminator (Wasserstein loss) keeps the encoded image close to the cover image using color-histogram and LPIPS perceptual losses. A spectral discriminator, inspired by SWAGAN but operating on the FFT rather than the wavelet domain, is trained jointly to push the decoder to reproduce high-frequency message content, combined with cross-entropy and QS-Attn contrastive losses.

Noise simulation

During training, encoded images are perturbed with JPEG compression, Gaussian noise, affine and perspective warp, sharpening, color dithering, medium blur, and random brightness/contrast/hue shifts — simulating digital, camera-sensor, and printer degradation so the decoder learns to survive them.

Results

StampOne hides 256 bits in a 256×256×3 image (0.13×10^-2 bpp) — roughly 10× the capacity of Code Face and StegaStamp, and can scale up to 4096 bits. M1 (Attention-VNet) and M2 (UNet++) are compared against StegaStamp, Code Face, RoSteALS, and a non-robust baseline (M3, two Attention-VNets with no frequency preprocessing).

Encoded image quality & printed decoding (40 face photos, Samsung S22 Ultra)

Method	Encoded image quality			Bit acc. (%) on printed VGGFace2 photos
Method	SSIM ↑	LPIPS ↓	ColorHisto ↓	6×6 cm	5×5 cm	4×4 cm	3×3 cm	2×2 cm
StegaStamp	0.93	4.92	6.11	78	72	70	65	48
Code Face	0.95	3.06	7.32	55	55	50	38	15
StampOne (M1)	0.98	1.25	5.38	100	100	100	95	62
StampOne (M2)	0.96	2.74	6.30	88	85	72	63	43
Non-robust (M3)	0.92	1.04	2.80	0	0	0	0	0
RoSteALS	0.95	0.04	0.09	0	0	0	0	0

Values shown are means (std. devs. omitted here — see paper Table 1). ↑ higher is better, ↓ lower is better. RoSteALS scores best on LPIPS/ColorHisto but recovers 0% of messages once printed.

Robustness to digital noise (1000 COCO test images)

Method	JPEG quality (%)			Gaussian noise (std)			Downscaled resolution (px)
Method	70	60	50	0.08	0.06	0.04	60²	80²	100²
StegaStamp	100	100	100	100	100	100	55	80	91
Code Face	80	88	88	55	75	86	2	11	36
RoSteALS	87	90	94	23	35	53	96	97	98
StampOne (M1)	100	100	100	98	100	100	74	98	100
StampOne (M2)	97	99	100	88	96	99	72	94	99
Non-robust (M3)	0	0	0	13	46	84	0	0	22

Robustness to contrast & brightness shift

Method	Contrast (0–1)			Brightness (-1 to 1)
Method	0.05	0.1	0.15	-1	1
StegaStamp	2	39	77	100	100
Code Face	0	1	30	90	90
RoSteALS	20	67	85	91	95
StampOne (M1)	100	100	100	100	100
StampOne (M2)	100	100	100	100	100
Non-robust (M3)	0	0	15	0	0

Message capacity vs. image quality (StampOne, Attention-VNet)

Message size	SSIM ↑	LPIPS ↓	ColorHisto ↓
256 bits	0.98	1.25	5.38
900 bits	0.94	5.2	10.0
1024 bits	0.92	4.14	8.7
4096 bits	0.91	11.1	14.2

Residual signal and encoded images for hidden messages of 256, 900, 1024 and 4096 bits — **Figure 4.** Encoding a message with capacities of 256, 900, 1024, or 4096 bits. The first row depicts the residual image added to the original image to generate the encoded image below it.

Datasets

Training used subsets of COCO (∼123k images) and DeepFashion (∼800k images). Digital-noise evaluation used 1000 held-out COCO images; printer-proof evaluation used BSDS500 and Urban100 (natural/urban scenes) and VGGFace2 (40 face images, printed and photographed with a Brother L3270CDW printer and a Samsung S22 Ultra).

Code

The reference implementation is published as the stampone Python package with an encoder/decoder pair you can install and import directly.

pip install stampone

from stampone import encoder, decoder

# CLI entry points, once installed:
#   stampone-encode --original_images ./images/ --message "hello"
#   stampone-decode --encoded_images ./results/Encoded_images/

Full source, model details, and setup instructions are on GitHub → farhadsh1992/StampOne. Pretrained encoder/decoder weights are available on request, send an email to farhadsh1992@gmail.com.

✉️ Request Pretrained Weights

BibTeX

@inproceedings{shadmand2024stampone,
  title     = {StampOne: Addressing Frequency Balance in Printer-proof Steganography},
  author    = {Shadmand, Farhad and Medvedev, Iurii and Schirmer, Luiz and Marcos, Jo\~{a}o and Gon\c{c}alves, Nuno},
  booktitle = {Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition Workshops (CVPRW)},
  pages     = {4367--4376},
  year      = {2024}
}
